Do you need a small compact duplexer for your repeater system?
Introducing the BridgeCom Systems' BCD-150 commercial duplexer. If you want a quality duplexer and no desense, look no further. The BCD-150 is the best mobile style duplexer on the market, You'll rest easy knowing you have a quality built duplexer handling your repeater needs.

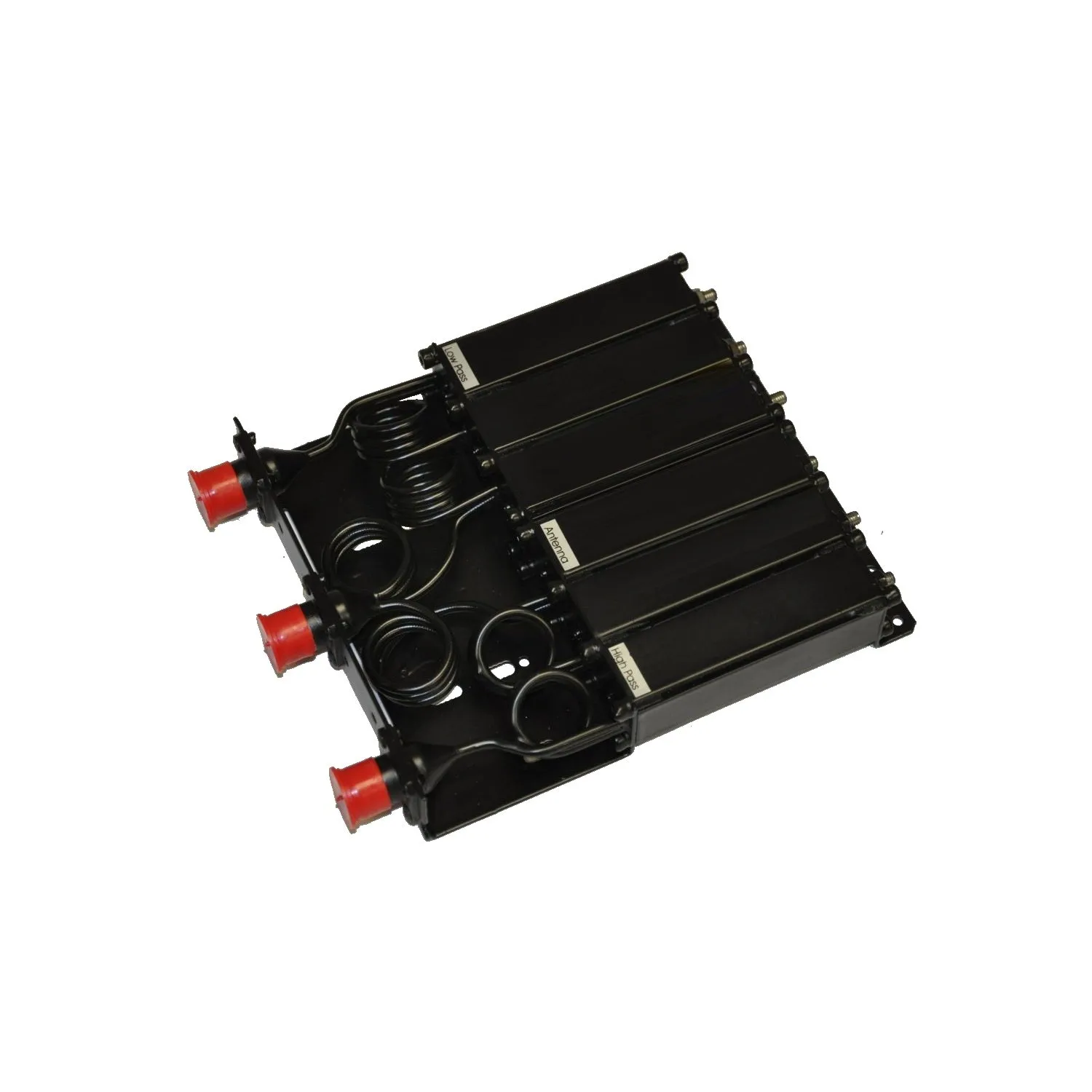

The BCD-150 is built around a mobile type six cavity chassis boasting an impressive 80 dB isolation. It requires 5-8 MHz of frequency spacing and will handle up to 50W. When you order a BCD-150 it comes tuned to your frequency ready for your application. Pick one up today with the optional jumper cabling kit.
!!! *** THIS DUPLEXER IS NOT TO BE USED FOR AMATEUR 2m SYSTEMS. IT CANNOT DO THE 600 kHz Split *** !!!
Specifications:
- VHF Frequencies Available: 145 - 163 MHz, 155-175 MHz
- Frequency spacing 5 - 8 MHz
- Max Input Power: 50W
- Insertion loss Rx and Antenna Port 1.5 dB
- Rx isolation at Tx frequency: >80 dB
- Tx Noise Suppression at TX Ant Port >80 dB
- Ideal for full duplex and repeaters (50 W maximum)
- Temperature compensation helical resonators
- Resonator: plated copper tubing (UHF) and tinned copper helical (VHF)
- Insulating material: teflon (VHF and UHF)
- Low loss conformable cables
- Shielding: extruded aluminum 6063-T5 templered
- N Type Female connectors
- Optional Cabling Kit - See RF Jumper Cable Collection
- Dimensions: 30 x 156 x 232 mm (1.2 x 6.2 x 9.2 in)
- Temperature: -30 to 60 C
- Weight < 1.1 kg
Free Programming/Tuning included! Please specify your Frequencies in the order notes.
Chat with us online or give us a call us at (816)-532-8451 if you have any questions.
